PostgreSQL Master-Slave repmgr triple Replication

In this tutorial we're going to setup a triple master-slave postgreSQL replication using repmgr:

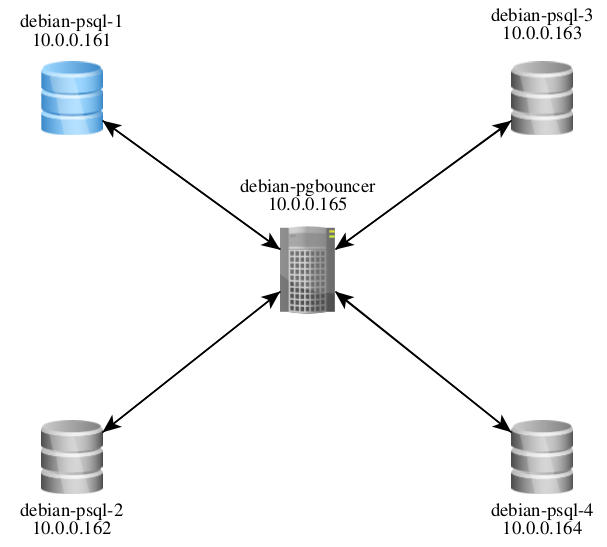

The idea of using the aforementionned full mesh topology is in case the master node fails, the slave nodes would elect a new master node amongst themselves. We will first setup our first debian CT on proxmox, setup the latest postgresql version on it and then configure it accordingly to act as the master node.:::

s

Initial setup

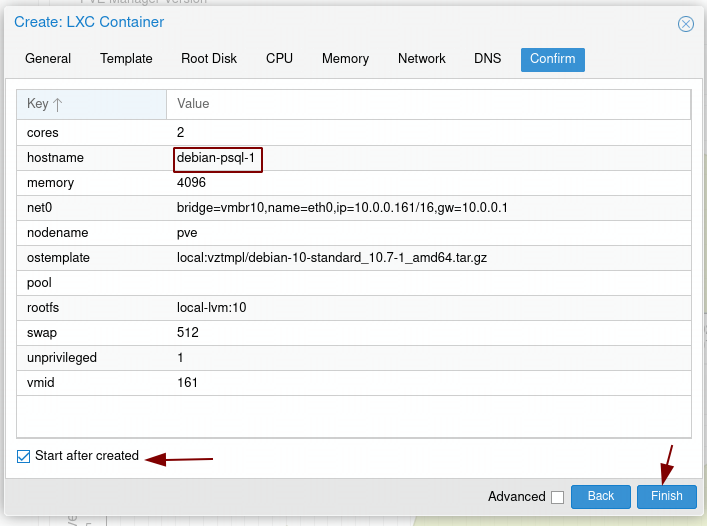

Once the CT is created, get in it's console to setup SSH properly:

Debian GNU/Linux 10 debian-psql-1 tty1

debian-psql-1 login: root
Password:
Linux debian-psql-1 5.4.106-1-pve #1 SMP PVE 5.4.106-1 (Fri, 19 Mar 2021 11:08:47 +0100) x86_64

The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
root@debian-psql-1:~# apt update -y ; apt upgrade -y ; apt install vim -y ; vim /etc/ssh/sshd_config


PermitRootLogin yes

:wq
root@debian-psql-1:~# systemctl restart sshd ; exit

Once that's done login via ssh:

[ 10.0.0.10/16 ] [ /dev/pts/58 ] [~]
→ ssh root@10.0.0.161
The authenticity of host '10.0.0.161 (10.0.0.161)' can't be established.
ED25519 key fingerprint is SHA256:s6HbZSbkMR4DSr8AnFn/owHl82+gQvuomQ++Oe8S6cw.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '10.0.0.161' (ED25519) to the list of known hosts.
root@10.0.0.161's password:
Linux debian-psql-1 5.4.106-1-pve #1 SMP PVE 5.4.106-1 (Fri, 19 Mar 2021 11:08:47 +0100) x86_64

The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Mon Apr  5 10:28:43 2021
root@debian-psql-1:~#

Now from here we're going to install the latest postgresql:

root@debian-psql-1:~# apt install lsb-release gnupg2 -y
root@debian-psql-1:~# sh -c 'echo "deb http://apt.postgresql.org/pub/repos/apt $(lsb_release -cs)-pgdg main" > /etc/apt/sources.list.d/pgdg.list'
root@debian-psql-1:~# wget --quiet -O - https://www.postgresql.org/media/keys/ACCC4CF8.asc | apt-key add -
OK
root@debian-psql-1:~# apt update -y
Hit:1 http://security.debian.org buster/updates InRelease
Hit:2 http://ftp.debian.org/debian buster InRelease
Hit:3 http://ftp.debian.org/debian buster-updates InRelease
Get:4 http://apt.postgresql.org/pub/repos/apt buster-pgdg InRelease [104 kB]
Get:5 http://apt.postgresql.org/pub/repos/apt buster-pgdg/main amd64 Packages [219 kB]
Fetched 322 kB in 2s (181 kB/s)
Reading package lists... Done
Building dependency tree
Reading state information... Done
All packages are up to date.
root@debian-psql-1:~# apt install postgresql-13 postgresql-13-repmgr -y
root@debian-psql-1:~# systemctl stop postgresql

Once that's done we're going to clone this CT 4 times to end up with the following topology:

Basically, each of the database server nodes are going to send queries to the pgpooler node and the pgpooler node is going to send them to the master node. So let's first clone our debian machine after we shut it down:

root@debian-psql-1:~# shutdown now
root@debian-psql-1:~# Connection to 10.0.0.161 closed by remote host.
Connection to 10.0.0.161 closed.

[ 10.0.0.10/16 ] [ /dev/pts/58 ] [~]
→

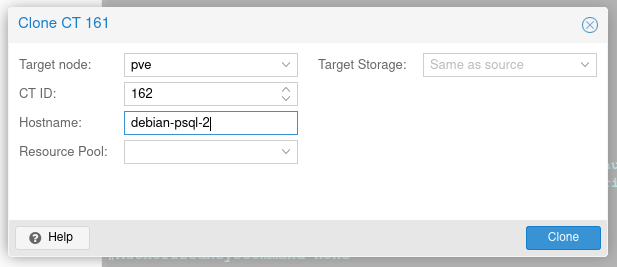

and clone it 4 times:

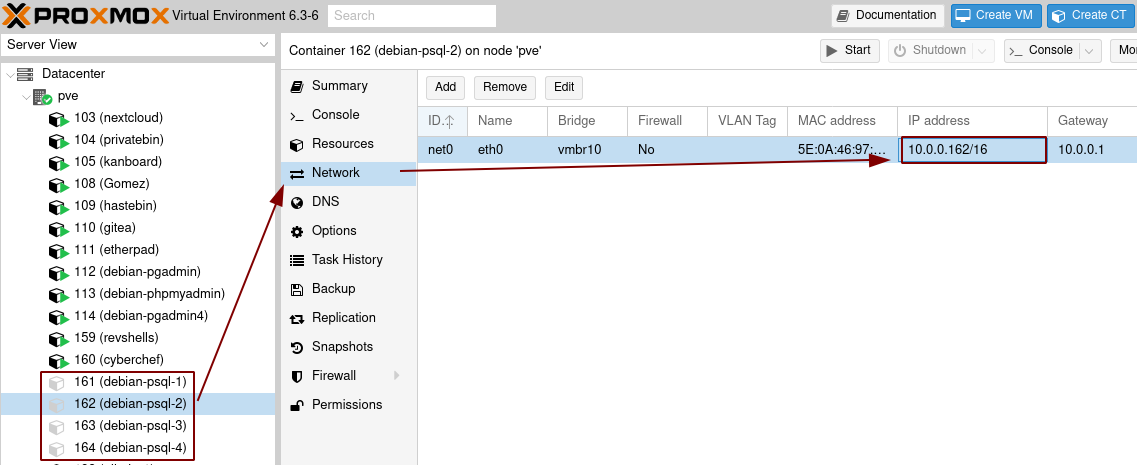

Once cloned, make sure you set their local IP correctly:

Once that's done, start them all and connect to them via SSH:

Now we want to create a .ssh directory owned by the postgres user, and we will do so FROM THE PGBOUNCER node, the other nodes won't communicate to each other by themselves, it will anyway happen through the pgbouncer node. Before we do that, we're going to install pgbouncer:

root@debian-pgbouncer:~# apt search pgbouncer
Sorting... Done
Full Text Search... Done
hobbit-plugins/stable 20190129 all
  plugins for the Xymon network monitor

pgbouncer/buster-pgdg 1.15.0-1.pgdg100+1 amd64
  lightweight connection pooler for PostgreSQL

pgbouncer-dbgsym/buster-pgdg 1.15.0-1.pgdg100+1 amd64
  debug symbols for pgbouncer

pgstat/buster-pgdg 1.0.1-1.pgdg100+1 amd64
  Collects PostgreSQL statistics the same way as a vmstat tool

prometheus-pgbouncer-exporter/stable 1.7-1 all
  Export metrics from pgbouncer to Prometheus

root@debian-pgbouncer:~# apt install pgbouncer -y

Once that's done, create pgbouncer's ~/.ssh directory

root@debian-pgbouncer:~# su - postgres
postgres@debian-pgbouncer:~$ ls -lash
total 16K
4.0K drwxr-xr-x  3 postgres postgres 4.0K Apr  5 11:43 .
4.0K drwxr-xr-x 21 root     root     4.0K Apr  5 10:50 ..
4.0K -rw-------  1 postgres postgres   32 Apr  5 11:43 .bash_history
4.0K drwxr-xr-x  3 postgres postgres 4.0K Apr  5 10:38 13

postgres@debian-pgbouncer:~$ mkdir ~/.ssh

postgres@debian-pgbouncer:~$ cd ~/.ssh

postgres@debian-pgbouncer:~/.ssh$ ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/var/lib/postgresql/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /var/lib/postgresql/.ssh/id_rsa.
Your public key has been saved in /var/lib/postgresql/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:jkRXPz3sIgIfhefwluU4HKLzRPBwI0jnxCq0nWQkwhY postgres@debian-pgbouncer
The key's randomart image is:
+---[RSA 2048]----+
|oEoooo*.o.o      |
| +..++.==+o..o   |
|.. = o+o+B *o +  |
|  o +.o+..O .o . |
|   .  .+S.... .  |
|     . o.. . .   |
|      . .        |
|                 |
|                 |
+----[SHA256]-----+

postgres@debian-pgbouncer:~/.ssh$

and we will do the same for the other nodes but from our pgbouncer node:

postgres@debian-pgbouncer:~/.ssh$ for i in {1..5} ; do echo ${i}; done
1
2
3
4
5

postgres@debian-pgbouncer:~/.ssh$ for i in {1..5} ; do echo 10.0.0.16${i}; done
10.0.0.161
10.0.0.162
10.0.0.163
10.0.0.164
10.0.0.165

postgres@debian-pgbouncer:~/.ssh$ for i in {1..5} ; do echo 10.0.0.16${i} ; ssh root@10.0.0.16${i} ; done

postgres@debian-pgbouncer:~/.ssh$ for i in {1..5} ; do echo 10.0.0.16${i} ; ssh root@10.0.0.16${i} "mkdir /var/lib/postgresql/.ssh && chown postgres:postgres /var/lib/postgresql/.ssh" ; done
10.0.0.161
root@10.0.0.161's password:
10.0.0.162
root@10.0.0.162's password:
10.0.0.163
root@10.0.0.163's password:
10.0.0.164
root@10.0.0.164's password:
10.0.0.165
root@10.0.0.165's password:
mkdir: cannot create directory '/var/lib/postgresql/.ssh': File exists
postgres@debian-pgbouncer:~/.ssh$

Now that's done, we're going to make sure each of the 4 servers can be accessed by the pgbouncer node:

postgres@debian-pgbouncer:~/.ssh$ for i in {1..5} ; do echo 10.0.0.16${i} ; scp id_rsa* root@10.0.0.16${i}:/var/lib/postgresql/.ssh/ ; done
10.0.0.161
root@10.0.0.161's password:
id_rsa                                                                                                                                                                                                                                                 100% 1831     1.3MB/s   00:00
id_rsa.pub                                                                                                                                                                                                                                             100%  407   590.4KB/s   00:00
10.0.0.162
root@10.0.0.162's password:
id_rsa                                                                                                                                                                                                                                                 100% 1831     1.7MB/s   00:00
id_rsa.pub                                                                                                                                                                                                                                             100%  407   593.3KB/s   00:00
10.0.0.163
root@10.0.0.163's password:
id_rsa                                                                                                                                                                                                                                                 100% 1831   758.0KB/s   00:00
id_rsa.pub                                                                                                                                                                                                                                             100%  407   375.6KB/s   00:00
10.0.0.164
root@10.0.0.164's password:
id_rsa                                                                                                                                                                                                                                                 100% 1831     1.2MB/s   00:00
id_rsa.pub                                                                                                                                                                                                                                             100%  407   541.9KB/s   00:00
10.0.0.165
root@10.0.0.165's password:
id_rsa                                                                                                                                                                                                                                                 100% 1831     1.8MB/s   00:00
id_rsa.pub                                                                                                                                                                                                                                             100%  407   579.9KB/s   00:00

postgres@debian-pgbouncer:~/.ssh$ for i in {1..5} ; do echo 10.0.0.16${i} ; scp id_rsa.pub root@10.0.0.16${i}:/var/lib/postgresql/.ssh/authorized_keys ; done
10.0.0.161
root@10.0.0.161's password:
id_rsa.pub                                                                                                                                                                                                                                             100%  407   512.1KB/s   00:00
10.0.0.162
root@10.0.0.162's password:
id_rsa.pub                                                                                                                                                                                                                                             100%  407   306.8KB/s   00:00
10.0.0.163
root@10.0.0.163's password:
id_rsa.pub                                                                                                                                                                                                                                             100%  407   455.7KB/s   00:00
10.0.0.164
root@10.0.0.164's password:
id_rsa.pub                                                                                                                                                                                                                                             100%  407   357.0KB/s   00:00
10.0.0.165
root@10.0.0.165's password:
id_rsa.pub                                                                                                                                                                                                                                             100%  407   221.5KB/s   00:00
postgres@debian-pgbouncer:~/.ssh$

Now that's done we can see that the postgres user from the pgbouncer node can log in via ssh to all the other 4 nodes as the postgres user without needing a password:

postgres@debian-pgbouncer:~/.ssh$ for i in {1..5} ; do echo 10.0.0.16${i} ; ssh postgres@10.0.0.16${i} "id" ; done
10.0.0.161
uid=107(postgres) gid=115(postgres) groups=115(postgres),102(ssl-cert)
10.0.0.162
uid=107(postgres) gid=115(postgres) groups=115(postgres),102(ssl-cert)
10.0.0.163
uid=107(postgres) gid=115(postgres) groups=115(postgres),102(ssl-cert)
10.0.0.164
uid=107(postgres) gid=115(postgres) groups=115(postgres),102(ssl-cert)
10.0.0.165
uid=107(postgres) gid=115(postgres) groups=115(postgres),102(ssl-cert)

Now this means that we have passwordless connectivity between all of the machines for the postgres user. Now for our next steps, we will need to apply the following changes primary host (node1 at 10.0.0.161)

root@debian-psql-1:~# apt install sudo -y ; usermod -aG sudo postgres ; echo "postgres ALL = NOPASSWD: /usr/bin/pg_ctlcluster" > /etc/sudoers.d/postgres
root@debian-psql-2:~# apt install sudo -y ; usermod -aG sudo postgres ; echo "postgres ALL = NOPASSWD: /usr/bin/pg_ctlcluster" > /etc/sudoers.d/postgres
root@debian-psql-3:~# apt install sudo -y ; usermod -aG sudo postgres ; echo "postgres ALL = NOPASSWD: /usr/bin/pg_ctlcluster" > /etc/sudoers.d/postgres
root@debian-psql-4:~# apt install sudo -y ; usermod -aG sudo postgres ; echo "postgres ALL = NOPASSWD: /usr/bin/pg_ctlcluster" > /etc/sudoers.d/postgres

once that's done, we're going to edit the postgresql.conf config file for our 4 hosts:

root@debian-psql-1:~# su - postgres
postgres@debian-psql-1:~$ vim /etc/postgresql/13/main/postgresql.conf




[...]

listen_addresses = '*'

[...]

shared_preload_libraries = 'repmgr'

[...]

include 'postgresql.replication.conf'

:wq to save and quit, then create the file /etc/postgresql/13/main/postgresql.replication.conf with this:

postgres@debian-psql-1:~$ vim /etc/postgresql/13/main/postgresql.replication.conf




max_wal_senders = 15
max_replication_slots = 15
wal_level = 'replica'
hot_standby = on
archive_mode = on
archive_command = '/bin/true'
wal_keep_segments = 500

:wq to save and quit out of vim, then edit pg_hba.conf:

postgres@debian-psql-1:~$ vim /etc/postgresql/13/main/pg_hba.conf



local   replication   repmgr                              trust
host    replication   repmgr      127.0.0.1/32            trust
host    replication   repmgr      10.0.0.0/16             trust

local   repmgr        repmgr                              trust
host    repmgr        repmgr      127.0.0.1/32            trust
host    repmgr        repmgr      10.0.0.0/16             trust

once that's done for all of the 4 hosts, restart postgresql:

postgres@debian-psql-2:~$ vim /etc/postgresql/13/main/pg_hba.conf
postgres@debian-psql-2:~$ exit
logout
root@debian-psql-2:~# systemctl restart postgresql ; systemctl status postgresql
* postgresql.service - PostgreSQL RDBMS
   Loaded: loaded (/lib/systemd/system/postgresql.service; enabled; v
   Active: active (exited) since Mon 2021-04-05 15:20:27 UTC; 38ms ag
  Process: 1001 ExecStart=/bin/true (code=exited, status=0/SUCCESS)
 Main PID: 1001 (code=exited, status=0/SUCCESS)

Apr 05 15:20:27 debian-psql-2 systemd[1]: Starting PostgreSQL RDBMS..
Apr 05 15:20:27 debian-psql-2 systemd[1]: Started PostgreSQL RDBMS.
