How to route your entire network through a VPN on the router

In this tutorial we're going to explain how to set up a VPN that covers the whole Local Area Network. Every device connected to LAN will automatically have its traffic routed through Mullvad VPN.

Setting up OpenWrt

Tutorial on setting up OpenWrt on your router is planned for the future: How to have privacy on your router (OpenWrt).

Installing WireGuard on the router

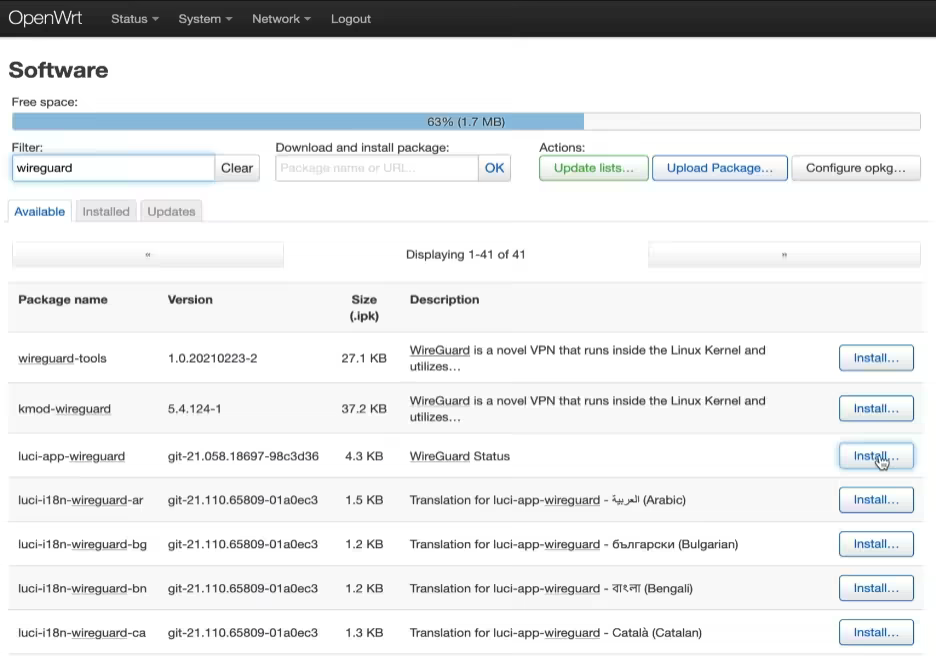

First of all, navigate to the OpenWrt panel on 192.168.1.1. After logging in to LuCI, navigate to System > Software. Click on the Update lists... button to run opkg update and refresh the available packages list.

After pulling the package list, search for wireguard in the package filter and look for luci-app-wireguard. Click Install... to install the wireguard package. Go to System > Reboot to reboot the router.

Downloading the Mullvad VPN configuration

Visit https://mullvad.net/en/account/wireguard-config to download a WireGuard configuration file from Mullvad. After generating a key, configure the exit location you want your router to connect through. Save the .conf file.

Creating a WireGuard interface

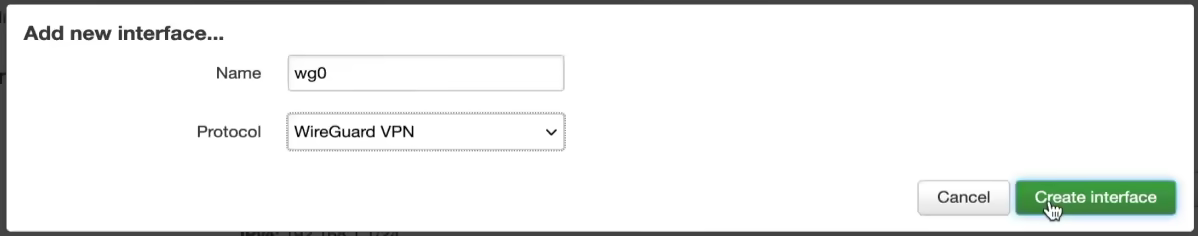

With the .conf file ready, log back into the router. Go to Network > Interfaces >> Add new interface....

I will name our new VPN interface wg0, and set the protocol to WireGuard VPN. Click Create interface.

Under the General Settings tab, paste the PrivateKey value from the configuration file into the Private Key field. Paste the IPv4 and IPv6 addresses separately from under Address into the IP Adresses fields.

Under the Advanced Setttings tab, paste the DNS value from the configuration file into the Use custom DNS servers field.

Click Save & Apply.

Setting up the firewall

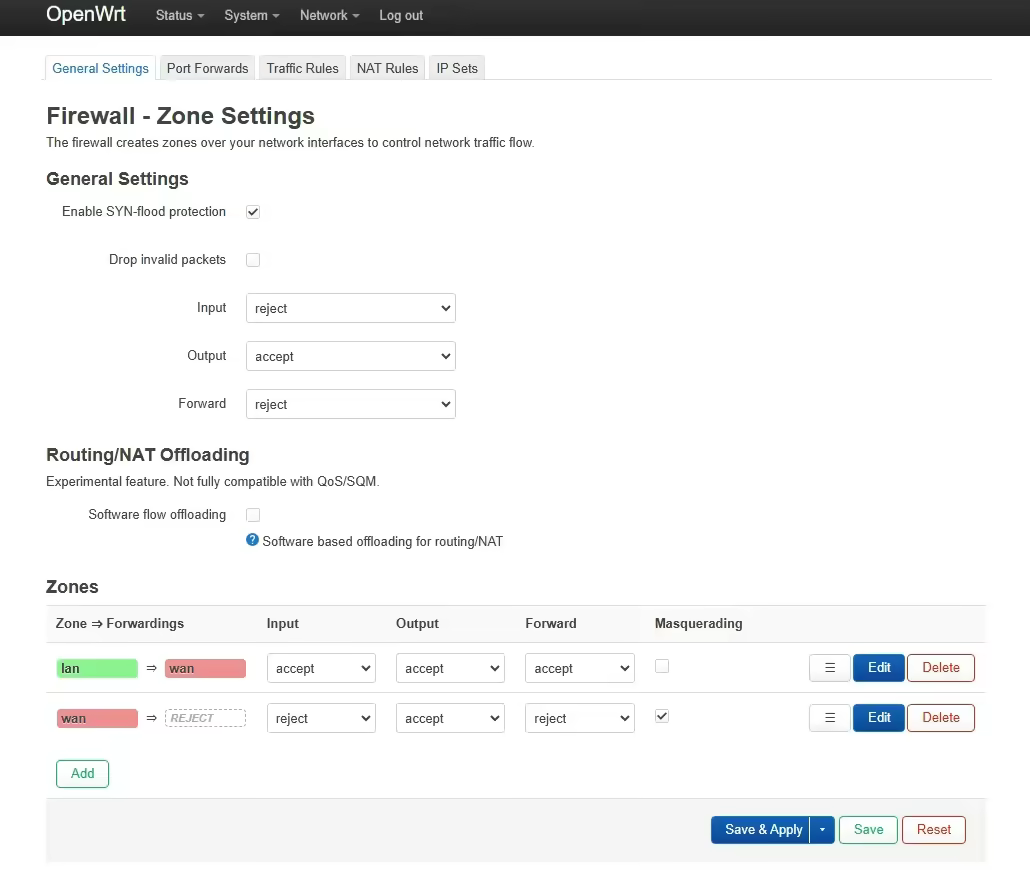

Go to Network > Firewall and click Add.

Set the Input, Output and Forward to accept. Check the Masquerading and MSS clamping checkboxes. Set the Covered networks to lan and our WireGuard interface. Set Allow forward to destination zones to wan. Set Allow forward from source zones to lan.

Click Save. Click Save & Apply.

Configuring peers

Go to Networking > Interfaces and click Edit under our WireGuard interface. Under the Peers tab, click on Add peer. Add the Description, paste the PublicKey from the configuration file as well as the IPv4 and IPv6 adresses. Check the Route Allowed IPs checkbox. The Endpoint value consists of IP:port. Copy the IP address into the Endpoint Host field, and the port into the Endpoint Port field.

Click Save. Click Save & Apply.

Gateway metrics

Go back to Network > Interfaces and edit the wg0 interface. Under Advanced settings, set Use gateway metric to 10. Click Save.

Edit the WAN interface. Under Advanced settings, set Use gateway metric to 20. Click Save.

Click Save & Apply.

Verify the VPN connection

Go to https://mullvad.net/en/check from any device connected to your Local Area Network. You can verify that the traffic is going through Mullvad VPN.

Conclusion

Using OpenWrt is a hassle-free way to protect the whole Local Area Network with Mullvad VPN.
