Mounting a remote drive over Tor (using SFTP)

On this tutorial, we'll be showcasing how you can create and mount a remote drive securely over Tor. We'll be using SFTP and SSHFS for this tutorial, and try to configure the server to be as secure as possible.

Server Configuration

First, we have to install sshd and Tor

root@fileserver:~# apt install openssh-server tor

We'll create a new group for the users we'll grant access to our fileserver. This group allows us to lock the users into a directory, and/or also disable SSH access entirely.

root@fileserver:~# addgroup fileserver
Adding group `fileserver' (GID 1001) ...
Done.

Let's setup the directory structure of our fileserver. We'll choose /fileserver for this, and create directories for both home directories and a shared directory of files

root@fileserver:~# mkdir -p /fileserver
root@fileserver:~# mkdir /fileserver/home
root@fileserver:~# mkdir /fileserver/shared
root@fileserver:~# chown -R root:fileserver /fileserver/shared
root@fileserver:~# chmod -R 774 /fileserver/shared

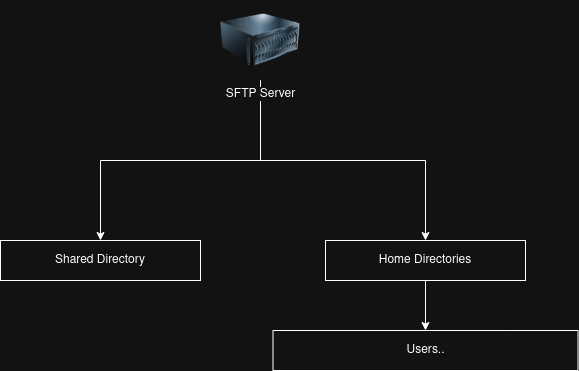

The directory structure looks like this:

Now, let's edit sshd's configuration.

root@fileserver:~# vim /etc/ssh/sshd_config.d/fileserver.conf

Add this to the new configuration file, if you want the users in fileserver group to only access SFTP:

Match Group fileserver
        ChrootDirectory /fileserver
        X11Forwarding no
        AllowTcpForwarding no
        PermitTTY no
        ForceCommand internal-sftp

Restricting users to SFTP-only provides a significantly reduced attack vector, since users cannot execute commands or programs in the server.

IMPORTANT: You should create seperate users for chrooted SFTP-only access and regular SSH access for users who may want both.

You should restart sshd after configuring.

root@fileserver:~# systemctl restart sshd

Creating users

Before we start creating users, we should make a symlink of the fileserver directory inside the directory itself. This may seem odd, but it is just to fix an issue with home directories not properly working.

root@fileserver:~# cd /fileserver
root@fileserver:/fileserver# ln -s . fileserver

We can create users by setting the base home directory to /fileserver/home/ and initial groups as fileserver. For example: we'll create a user for Bob.

root@fileserver:~# useradd -m -b /fileserver/home/ -G fileserver bob

Now, Bob has a user and their home directory is in /fileserver/home/bob

Hosting SFTP behind Tor

Modify Tor's configuration to host a hidden service forwarding the SSH port.

root@fileserver:~# vim /etc/tor/torrc

Insert this to the file:

HiddenServiceDir /var/lib/tor/fileserver_service/
HiddenServicePort 22 127.0.0.1:22

Now, restart Tor to use the new configuration.

root@fileserver:~# systemctl restart tor

We can get the .onion hostname of our new fileserver from /var/lib/tor/fileserver_service/hostname

root@fileserver:/var/lib/tor/fileserver_service# cat hostname
wjlpqxc2xsj3575nxlnj7rvctfr57rons56auisfrjjqzmqrbutnsmad.onion

Client Configuration

First, install SSHFS, Tor and netcat-openbsd

root@localhost:~# apt install sshfs tor netcat-openbsd

We'll write a configuration file for SSH for our fileserver host. This is to make it easier to reference the fileserver in SSHFS and SFTP configurations.

root@localhost:~# vim /etc/ssh/ssh_config.d/fileserver.conf

Host tor_fileserver
    Hostname wjlpqxc2xsj3575nxlnj7rvctfr57rons56auisfrjjqzmqrbutnsmad.onion
    ServerAliveInterval 20
    ProxyCommand /bin/nc -xlocalhost:9050 -X5 %h %p

Enable and start Tor.

root@localhost:~# systemctl enable --now tor

You can test out if the server and the configuration works out using ssh and sftp. It should be similar to the output below:

bob@localhost:~$ ssh bob@tor_fileserver
bob@wjlpqxc2xsj3575nxlnj7rvctfr57rons56auisfrjjqzmqrbutnsmad.onion's password:
PTY allocation request failed on channel 0
This service allows sftp connections only.
Connection to wjlpqxc2xsj3575nxlnj7rvctfr57rons56auisfrjjqzmqrbutnsmad.onion closed.
bob@localhost:~$ sftp bob@tor_fileserver
bob@wjlpqxc2xsj3575nxlnj7rvctfr57rons56auisfrjjqzmqrbutnsmad.onion's password:
Connected to tor_fileserver.
sftp> pwd
Remote working directory: /home/bob
sftp> ls /
/fileserver  /home        /shared
sftp> exit

As root, we should generate a SSH keypair and copy it over to the fileserver, so we don't have to authenticate via passwords (the server should be configured to have PubkeyAuthentication yes, and ideally PasswordAuthentication no after this process)

root@localhost:~# ssh-keygen -t ed25519
Generating public/private ed25519 key pair.
Enter file in which to save the key (/root/.ssh/id_ed25519):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_ed25519
Your public key has been saved in /root/.ssh/id_ed25519.pub
The key fingerprint is:
SHA256:CgaDruP+EYCsS/HOD8VQDmIbjnQfrbHtfaUqLBSB72Y root@localhost
The key's randomart image is:
+--[ED25519 256]--+
| = o.o.          |
|B.=.=o..         |
|+*o..o*          |
|o +oo= .     .   |
|.o o+oo S   o    |
|o.o.oE o . o     |
|+  =+ o   o      |
|..  +. o .       |
|.o.. .. .        |
+----[SHA256]-----+
root@localhost:~# ssh-copy-id -s bob@tor_fileserver
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_ed25519.pub"
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
bob@wjlpqxc2xsj3575nxlnj7rvctfr57rons56auisfrjjqzmqrbutnsmad.onion's password:
sftp> -get .ssh/authorized_keys /root/.ssh/ssh-copy-id.dZKXo77Clg/authorized_keys
sftp> -mkdir .ssh
remote mkdir "/home/bob/.ssh": Failure
sftp> chmod 700 .ssh
sftp> put /root/.ssh/ssh-copy-id.dZKXo77Clg/authorized_keys .ssh/authorized_keys
sftp> chmod 600 .ssh/authorized_keys

Number of key(s) added: 1

Now try logging into the machine, with:   "sftp 'bob@tor_fileserver'"
and check to make sure that only the key(s) you wanted were added.

root@localhost:~# sftp bob@tor_fileserver
Connected to tor_fileserver.
sftp> exit
root@localhost:~#

Now you can mount the fileserver in a new directory (we'll use /mnt/fileserver/ for this)

root@localhost:~# mkdir /mnt/fileserver
root@localhost:~# sshfs bob@tor_fileserver:/ /mnt/fileserver/

To make this persistent across device reboots, we can write a new entry in /etc/fstab

bob@tor_fileserver:/    /mnt/fileserver/        fuse.sshfs      x-systemd.automount,_netdev,allow_other,reconnect        0       0
