Prevent IP leaks using a VPN on the Home Server Host OS

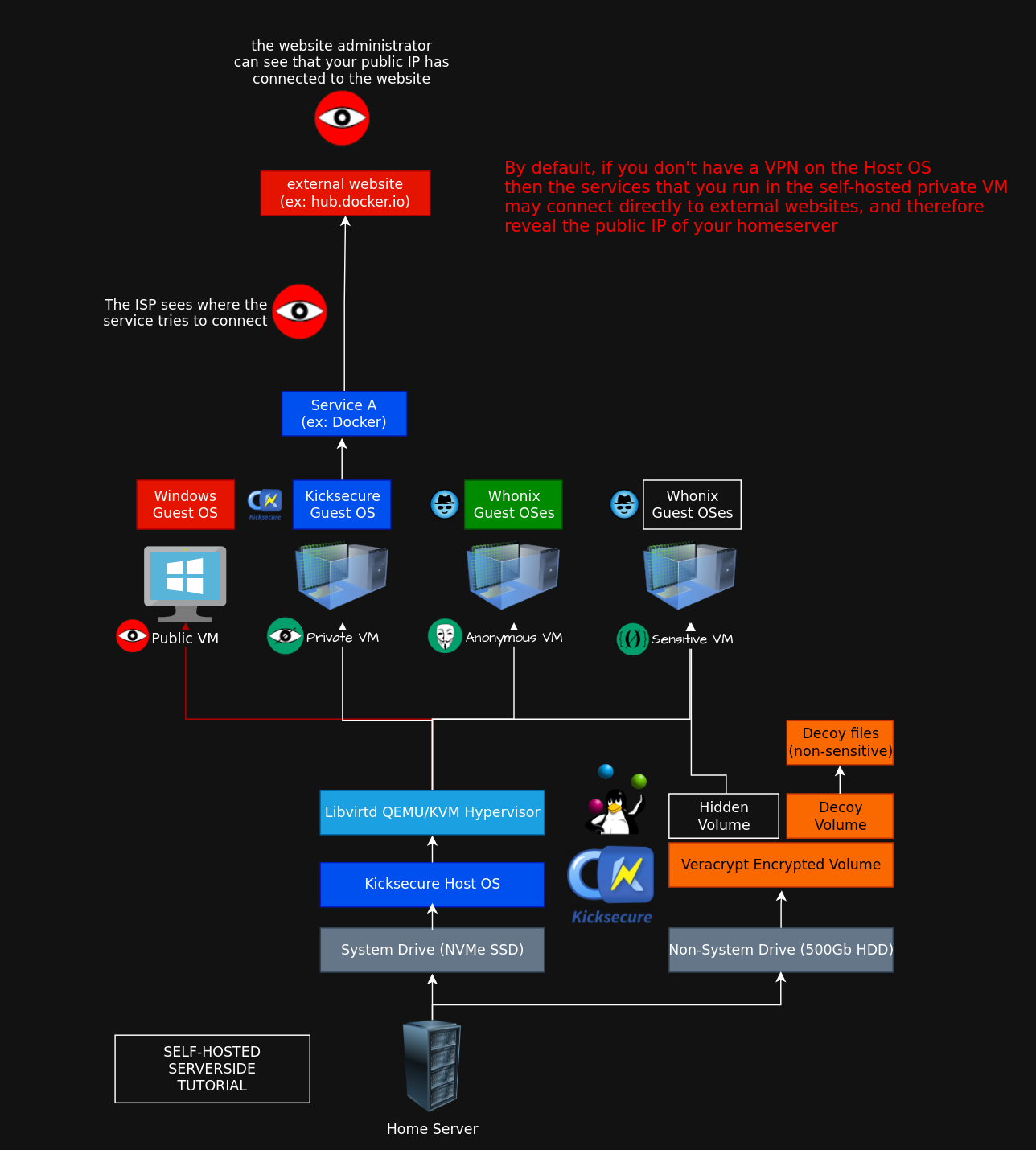

When you are self-hosting services at home, you need to take into account that the services that you are running at home may try to connect to external services

Targeted Setup

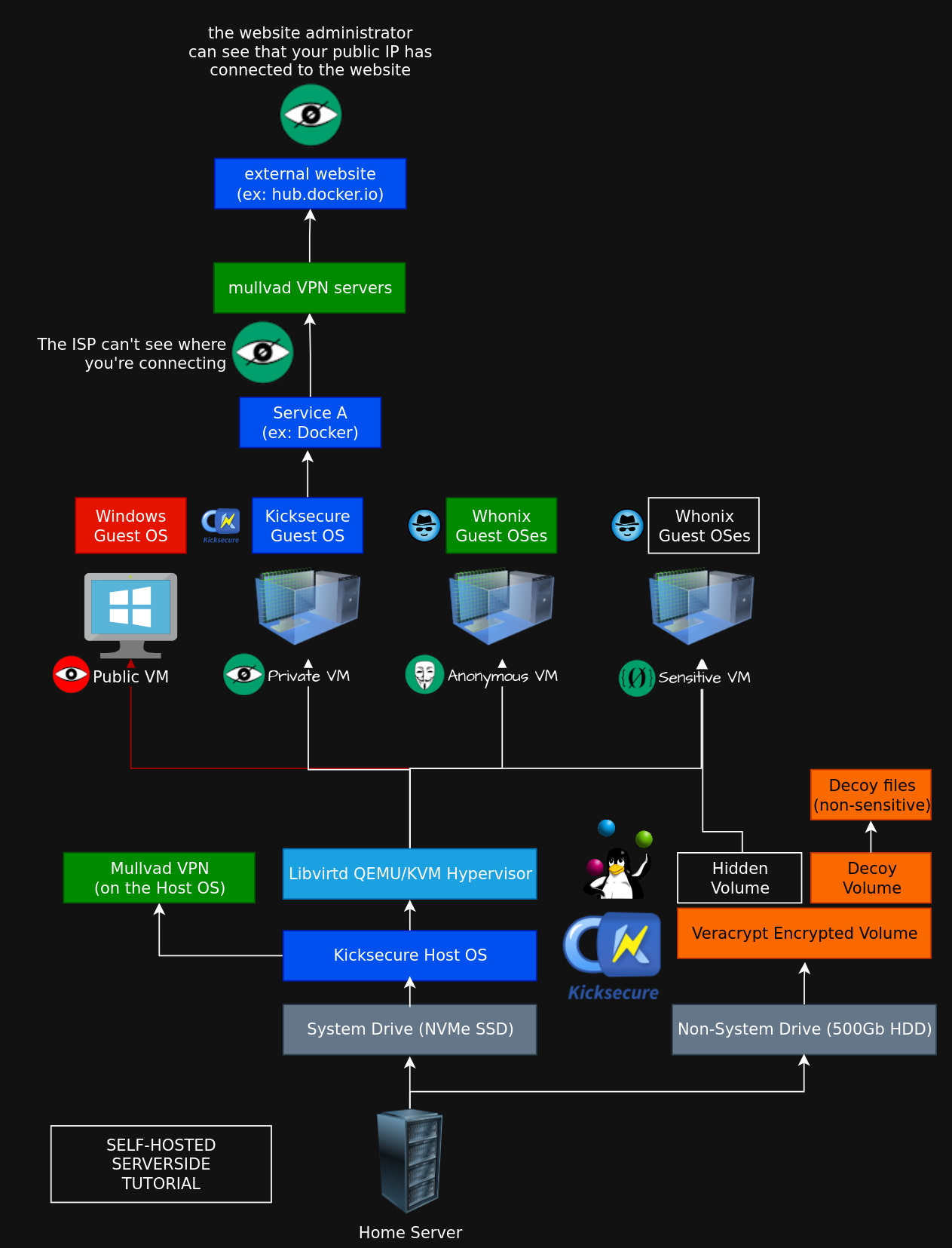

What we need here is a VPN on the Host OS level, that way every connection that any of the VMs try to make will be routed through the VPN, to prevent direct IP connection leaks from being percieved by the ISP and the external websites.

First, install the VPN like we saw previously here, but the only difference being that we now install it on the Host OS, rather than inside the VM.

# Download the Mullvad signing key
sudo curl -fsSLo /usr/share/keyrings/mullvad-keyring.asc https://repository.mullvad.net/deb/mullvad-keyring.asc

# Add the Mullvad repository server to apt
echo "deb [signed-by=/usr/share/keyrings/mullvad-keyring.asc arch=$( dpkg --print-architecture )] https://repository.mullvad.net/deb/stable $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/mullvad.list
# Or add the Mullvad BETA repository server to apt
echo "deb [signed-by=/usr/share/keyrings/mullvad-keyring.asc arch=$( dpkg --print-architecture )] https://repository.mullvad.net/deb/beta $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/mullvad.list

# Install the package
sudo apt update
sudo apt install mullvad-vpn

# Connect to Mullvad VPN
mullvad account login
Enter an account number: 91320912809328832
Mullvad account "91320912809328832" set

Then, configure mullvad as follows to prevent IP leaks from happening:

# Connect to the VPN:
mullvad lockdown-mode set on
mullvad connect

curl icanhazip.com -4
91.90.40.158

From there you can check from the host OS that you have access to the internet via the VPN:

Here as you can see there are no ip leaks from the Host OS anymore, but as you're going to see, it is also the case from the VM aswell:

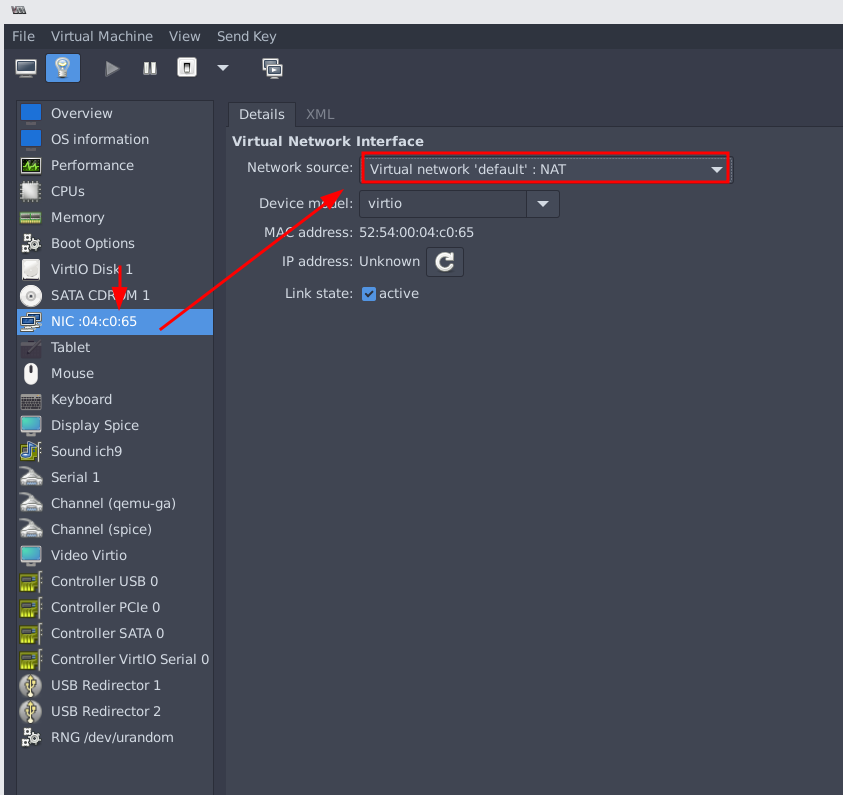

From there, you need to make sure that your private VM has it's network interface set as "NAT" as it is by default (be aware that if the VM network interface is configured as macvtap or bridge, the traffic won't go through the host OS VPN!):

And then once applied, you can check if it works as intended from inside the VM (all that's required is for the VM to have a NAT connection), by going to https://mullvad.net/en/check from inside the VM:

And here as you can see, there are no IP leaks either from the guest OS ! That concludes our tutorial.
